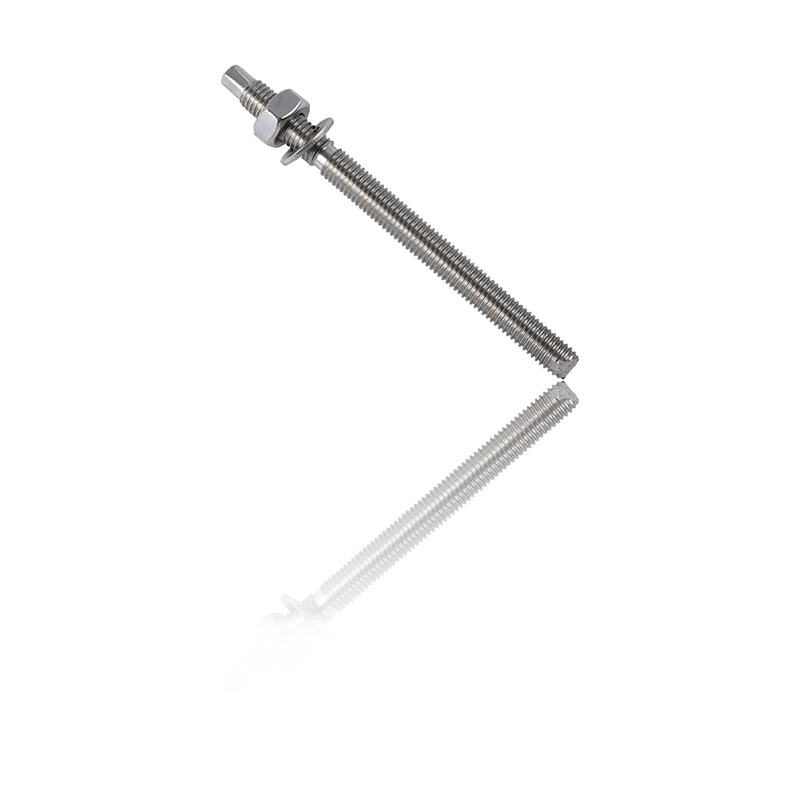

Chemical in stainless steel and yellow zinc plated steel.
Heavy duty fixing without radial influence of expansion forces can be used close to edges.

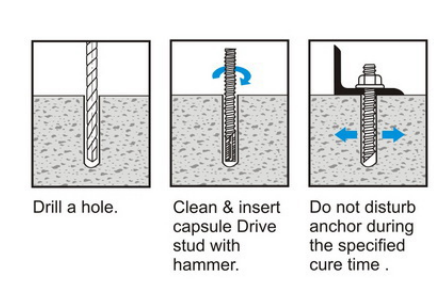

Accurate drill depth is necessary.
Fully loadable after the prescribed hardening-setting time.
 |
||||

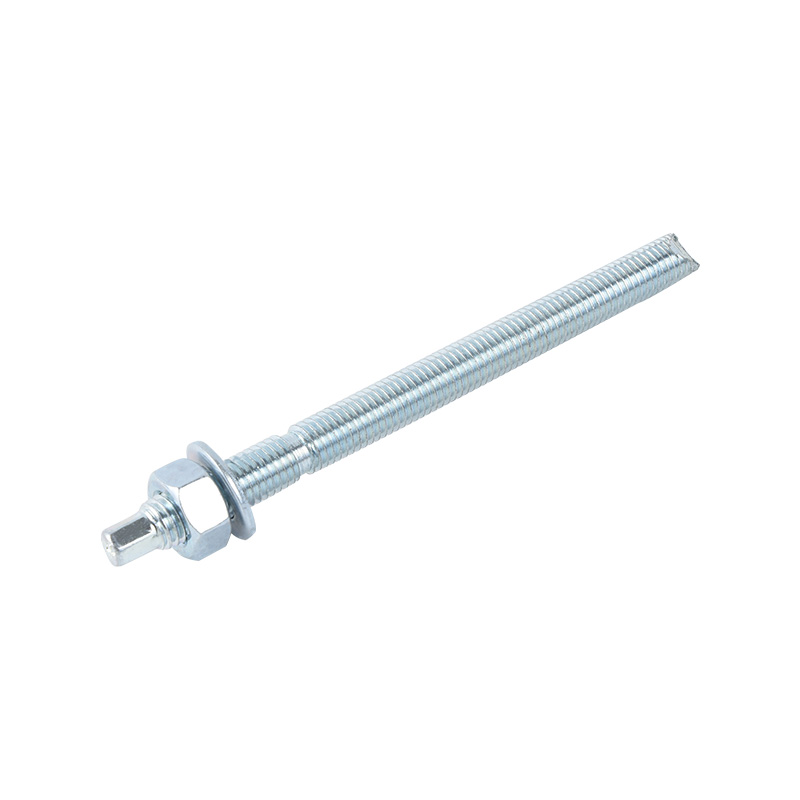

| 203CM: Chemical anchor thread stud | ||||
| ltem NO. | Anchor size (mm) |
Max Fixture Thickness(mm) |
Hole Size | Qty.Per box |
 |
M8×110 | 16 | 10×80 | 10 |
| M8×150 | 46 | 10x80 | 10 | |
| M8×170 | 60 | 10×80 | 10 | |
| M8×250 | 120 | 10×80 | 10 | |
| M10×120 | 16 | 12×90 | 10 | |
| M10×130 | 22 | 12×90 | 10 | |
| M10×150 | 40 | 12×90 | 10 | |
| M10×180 | 60 | 12×90 | 10 | |
| M10×250 | 110 | 12×90 | 10 | |
| M12×130 | 8 | 14×110 | 10 | |
| M12×160 | 30 | 14×110 | 10 | |
| M12×190 | 60 | 14×110 | 10 | |
| M12×220 | 80 | 14×110 | 10 | |
| M16×190 | 38 | 18×125 | 10 | |
| M16×220 | 80 | 18×125 | 10 | |
| M20×260 | 70 | 25×170 | 6 | |
| M24×300 | 65 | 28×210 | 6 | |
| M30×380 | 70 | 35×280 | 6 | |

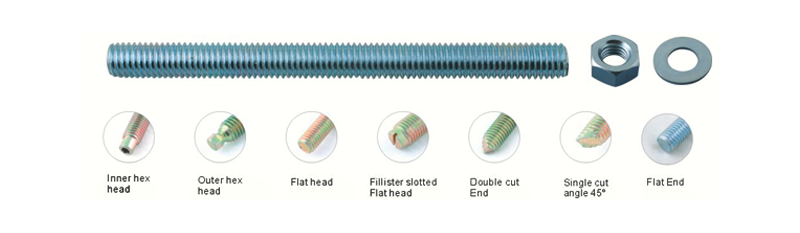

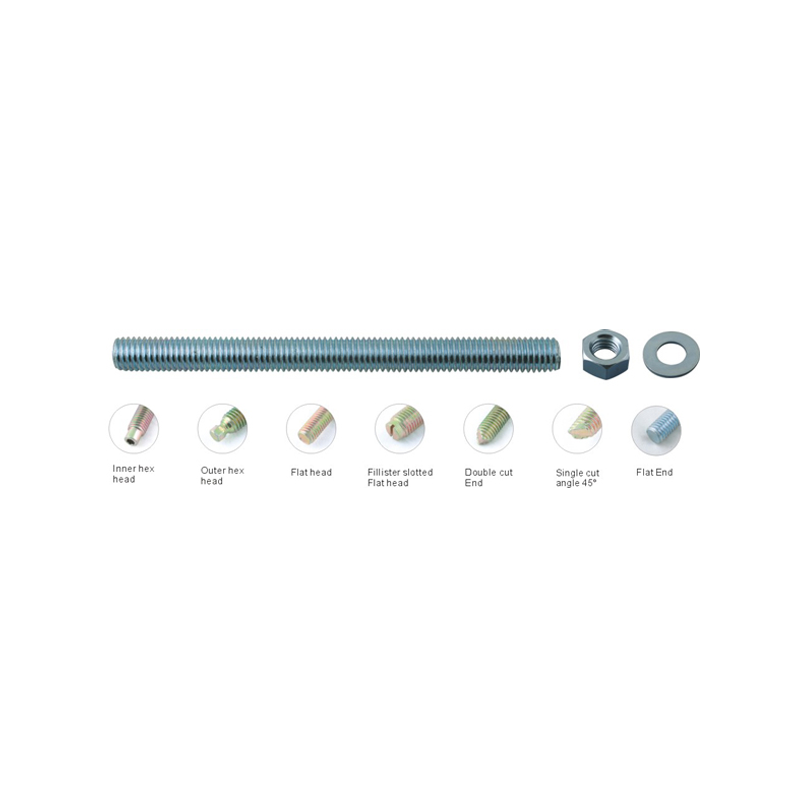

| **yellow zinc plated, white zinc plated (Cr3& Cr6),hot dippper gavanizedor mechanical galvanized are available **carbon steel & stainless steel (A2OR A4)is available. *the thread/size also could be in BSW& UNc **one piece tool per box |
||||

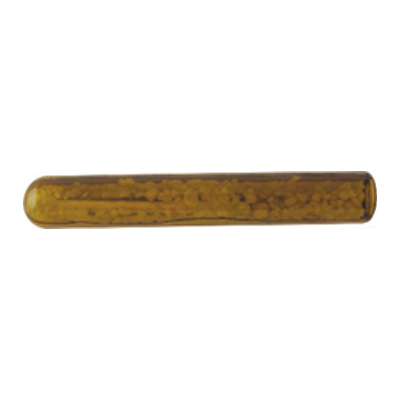

| 203G: Glass capsule for chemical anchor | ||||
| Item NO. |
Anchor size (mm) |
DrillΦ | Hole Size |
Qty.Per box |
 |
M8×80 | 10 | 80 | 10 |
| M10x90 | 12 | 90 | 10 | |
| M12×110 | 14 | 110 | 10 | |
| M16×125 | 18 | 125 | 5 | |
| M20×170 | 25 | 170 | 5 | |
| M24x210 | 28 | 210 | 5 | |
| M30x265 | 35 | 265 | 5 | |
