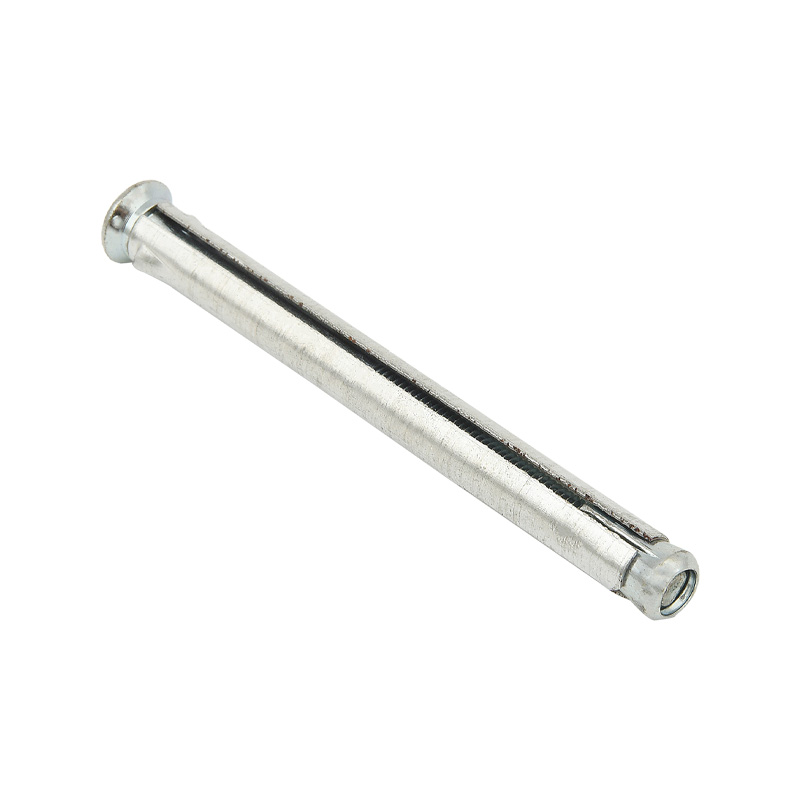

Metal Frame Anchor

Product Description:

Perfect anchoring of theframe thanks to the pre-formedfins.
High capability for absorbing shear loads: possibility of frame-wall anchoring spaced up to 30mm.
Resistance to heat and thermal shocks.

inquiry

PREV：Hollow Wall Anchor
NEXT：Cut Anchor

Installation Guideline:


a)Drill and remove fromdust	b) lnsert the anchor	c)Tighten the screw	d)Fixing completed, now putthe cup

Product Specifications:

228A：Metal frame anchor
ltem NO.	Size	Sleeve Size (mm)	Screw size	Fixing Length Max(mm)	Kgs/1,000pcs
	8x72	8×72	M5×88	42	21
	8x92	8×92	M5×108	62	27
	8×112	8×112	M5×128	82	32
	8×132	8×32	M5×148	102	36
	10×52	10×50	M6×68	20	30
	10x72	10×70	M6×88	40	35
	10×92	10x90	M6×108	60	43
	10×112	10×110	M6×128	80	51
	10×132	10×130	M6×148	100	59
	10×152	10×150	M6×168	140	66
	10×182	10×180	M6×198	150	71
	10×202	10×200	M6×218	170	79
